Custom Electric Mountain Bikes in the UK

UK Carbon Bikes specialises in high-performance electric mountain bikes built around the CEF69 carbon frame platform. We offer UK-based stock, fast delivery, and fully custom builds tailored to your riding style.

Choose from Bafang M510, M560, and RS motor options, combined with premium suspension, drivetrain, and battery configurations. Whether you're looking for a value-focused entry build or a high-end Factory specification, we deliver performance without the inflated cost of mainstream brands.

UK Carbon Bikes
CEF69 E-MTB Platform
UK stock · Fast delivery · Custom builds

High-performance electric MTBs without the inflated big-brand pricing.

Built around the CEF69 platform and tailored for UK riders, with value-focused build options, custom component choices, and a premium look from the first click.

View the range Enquire on WhatsApp

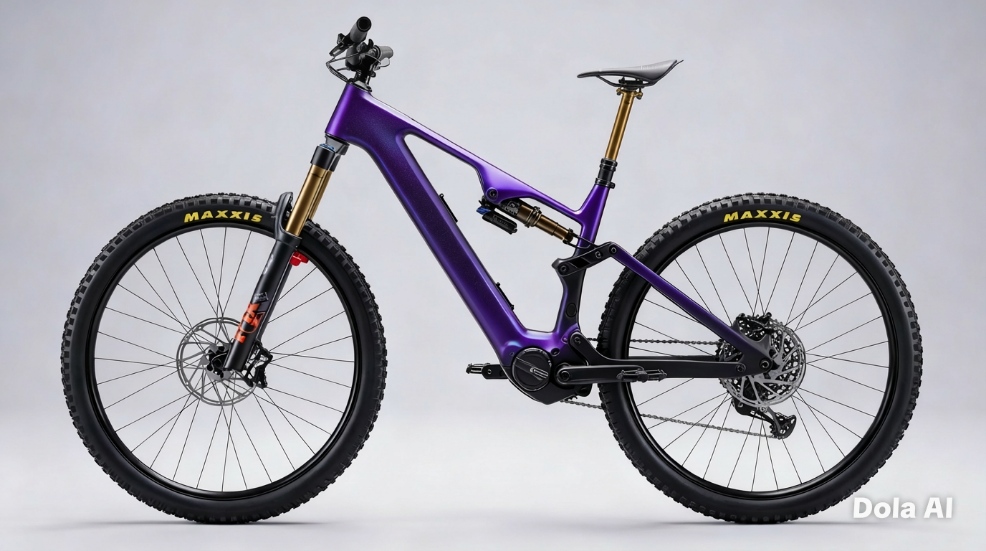

CEF69 electric mountain bike
170mm Enduro travel platform
Carbon Modern e-MTB chassis
4 Motors M510 · M560 · RS upgrades
CEF69 platform

The frame comes first.

The CEF69 is designed as a serious carbon e-MTB platform with long-travel intent, modern geometry, and clean motor integration.

170mm

Designed around aggressive long-travel riding and enduro-focused use.

Carbon frame

Light, clean-looking, and ideal for premium custom builds.

Modern geometry

Built for confidence at speed and stable handling on rough terrain.

Motor choice

M510, M560, M510RS, or M560RS depending on the ride feel you want.

Key platform highlights

UK-based stock and custom build support make the CEF69 far easier to buy than importing a frame direct and handling everything yourself.

Geometry & frame details

The CEF69 features modern enduro geometry across sizes M–L, with a long reach, slack head angle (~64–65°), and steep seat angle for a balanced, confident ride. It’s designed to stay stable at speed while remaining agile on technical terrain.

Built around a 170mm fork and 205 x 60mm shock, the frame delivers approximately 160–170mm of rear travel — ideal for aggressive trail and enduro riding.

Wheel format

29er or mullet-ready, depending on your final build offering.

Suspension platform

Built around a 170mm fork and 205 x 60mm rear shock setup.

Travel range

Approximately 160–170mm rear travel depending on final configuration.

Model range

Three clear builds. One strong platform.

Core

A solid, no-nonsense build designed to deliver performance where it matters most. Reliable components, capable suspension, and the perfect entry into high-performance e-MTB riding.

Pro

A refined upgrade with improved suspension and drivetrain performance. Built for riders who want greater control, durability, and confidence on more demanding terrain.

Factory

Top-tier performance with premium components throughout. Featuring high-end suspension and wireless shifting, this is the ultimate CEF69 build for riders who want the best of everything.

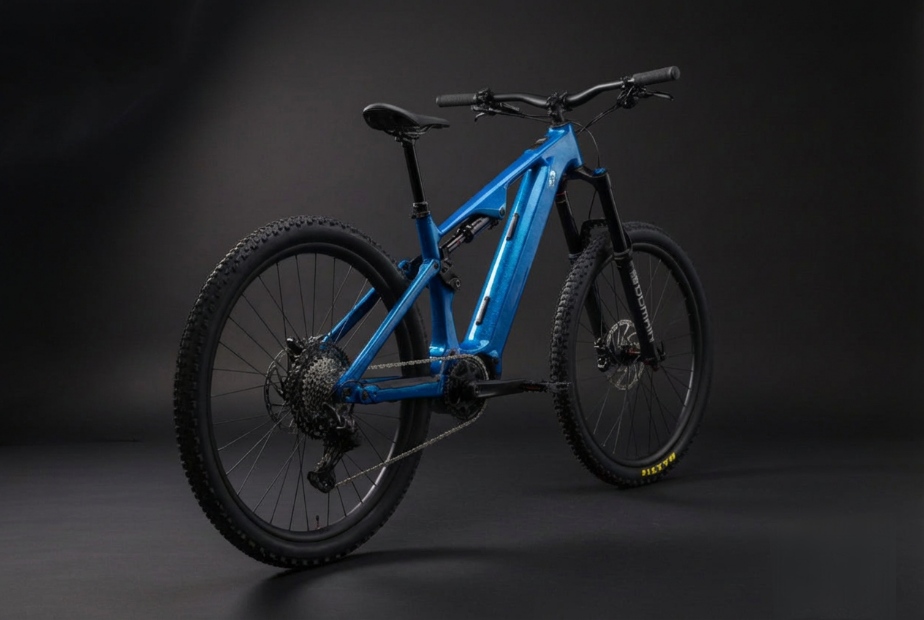

CEF69 Core CEF69 Core electric mountain bike

CEF69 Core

From £2,999

A full-power e-MTB that delivers everything you need and nothing you don’t. The Core is tough, reliable, and designed for real-world riding — with durable components and smooth power that let you focus on the trail, not the bike.

Perfect for riders who want maximum value without compromise.

Bafang M510 motor as standard
M510RS or M560RS available as upgrade choices
835Wh integrated battery
Shimano CUES LinkGlide drivetrain
Shimano brakes and entry-level RockShox suspension
Enquire about Core

CEF69 Pro

From £3,699

The Pro takes things up a level with serious suspension and a dialled spec built for aggressive riding. It’s faster, smoother, and more capable when the terrain gets rough — giving you the confidence to push harder on every ride.

The sweet spot for riders who want performance without going full premium.

Bafang M510 standard
M560, M510RS, or M560RS available as upgrades
835Wh integrated battery
RockShox Zeb fork
Upgraded drivetrain and stronger overall kit
Enquire about Pro
CEF69 Pro CEF69 Pro electric mountain bike
CEF69 Factory CEF69 Factory electric mountain bike

CEF69 Factory

From £4,499

Top-tier suspension, wireless shifting, and a premium finish — the Factory is built for riders who want the best. Every detail is designed to deliver a high-end ride feel, with cutting-edge tech and performance to match.

The ultimate expression of the CEF69 platform.

Bafang M560 standard
M510RS or M560RS available for custom spec builds
835Wh battery with extender-ready setup
Fox 38 Factory fork and Fox Factory rear shock
Wireless shifting and premium finishing kit
Enquire about Factory
Bafang motor options

Choose the motor character that suits your build.

Standard builds can start with M510 or M560, while RS motors can be offered as upgrade paths and as part of fully custom builds.

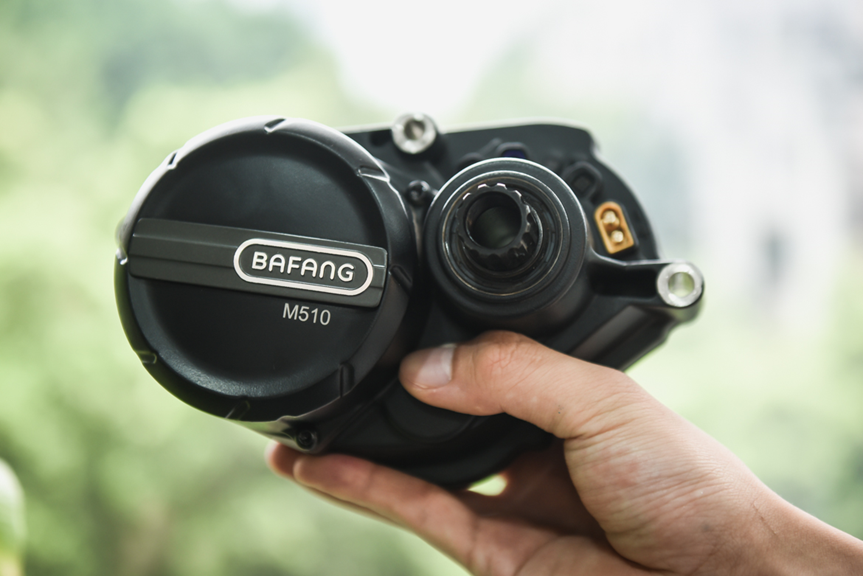

Bafang M510 motor

Bafang M510

The M510 is Bafang’s lighter eMTB motor option, with 250W rated power, 110Nm max torque, 2.9kg claimed weight, and max cadence support up to 120RPM.

250WRated power
110NmMax torque
2.9kgWeight
120RPMMax cadence support

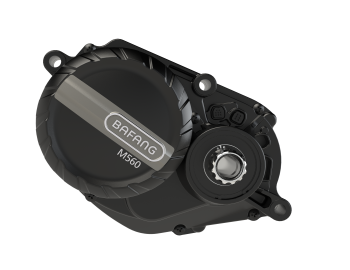

Bafang M560 motor

Bafang M560

The M560 is the more powerful public-range option, with 750W rated power, 150Nm max torque, 3.3kg claimed weight, and compatibility with full-integrated and semi-integrated batteries.

750WRated power
150NmMax torque
3.3kgWeight
IntegratedBattery compatibility

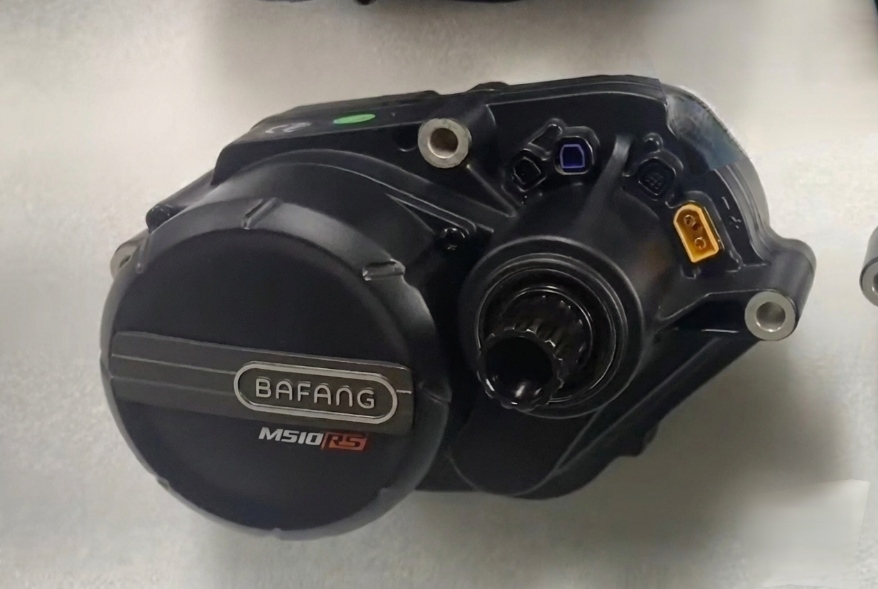

Bafang M510RS motor

Bafang M510RS

The M510RS can be positioned as the sharper-response upgrade choice for riders wanting a more aggressive performance feel while staying within the lighter M510-style platform. Add your exact supplier-confirmed spec sheet here if you have it.

RS upgradePerformance-focused option
110NmTorque referenced by Bafang blog
Custom buildsAvailable on request
Upgrade pathCore, Pro, or custom

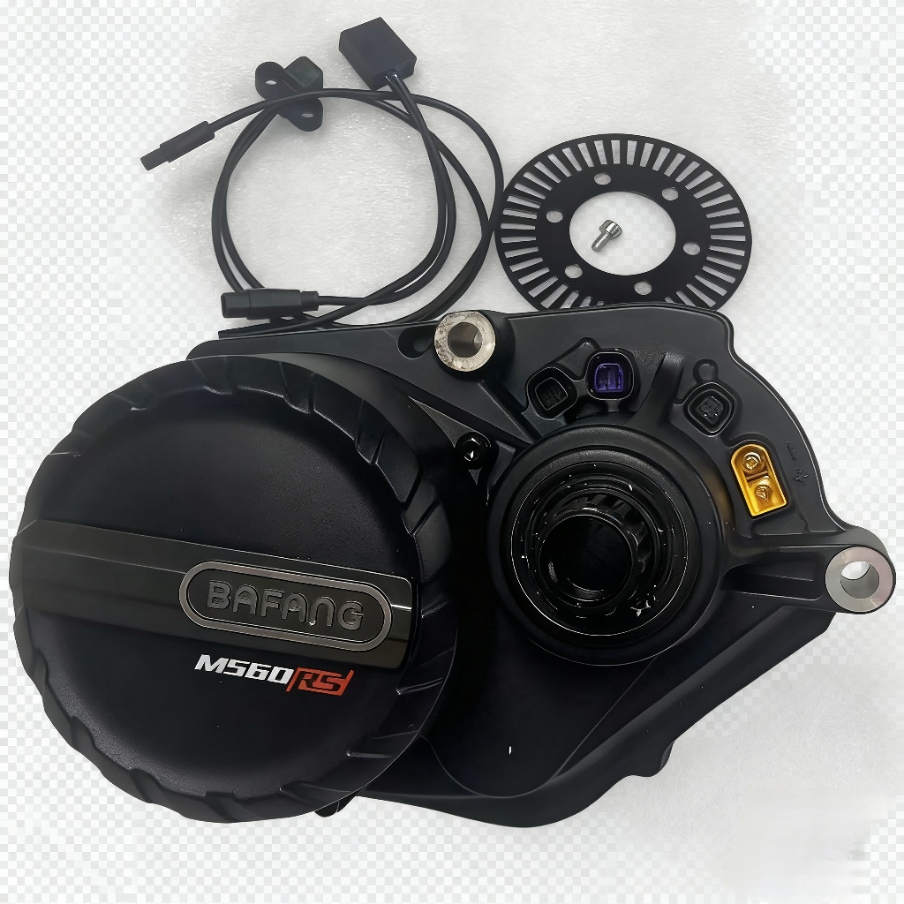

Bafang M560RS motor

Bafang M560RS

The M560RS can be positioned as the hardest-hitting custom-build upgrade choice for riders chasing maximum support and a more aggressive ride character. Add your exact supplier-confirmed figures here if you want to show detailed specs publicly.

RS upgradeTop custom option
High outputPerformance-led setup
Custom buildsAvailable on request
Upgrade pathPro, Factory, or bespoke
Custom build options

Built around you, not just a stock spec.

Motor choice

M510, M560, M510RS, or M560RS depending on budget and ride character.

Battery options

720Wh, 835Wh, and optional external range extender.

Suspension upgrades

From value-focused RockShox setups through to Fox Factory level builds.

Drivetrain packages

Durable Shimano CUES through to high-end wireless shifting options.

Wheel and brake options

Tailor the bike to riding style, budget, and terrain.

Custom paint

a wide variety of customs paints and finishes are available so you can have something bespoke that stands out from the crowd.

Frequently Asked Questions

What is the difference between M510 and M560?

The M510 is a lighter, more efficient motor ideal for trail riding, while the M560 delivers higher power and torque for aggressive riding and climbing.

Do you offer custom electric mountain bike builds?

Yes, we offer fully custom builds including motor choice, suspension, drivetrain, wheels, and custom paint options.

Do you ship across the UK?

Yes, all bikes are shipped from within the UK for fast and reliable delivery.

What battery options are available?

We offer 720Wh and 835Wh integrated batteries, with optional external range extenders for increased range.

Get in touch

Start a build enquiry.

WhatsApp

Fastest way to discuss a build, spec change, or stock question.

Message on WhatsApp

Email

Best for detailed enquiries, supplier discussions, and written quotes.

ukcarbonbikes@gmail.com

Custom builds

Want something different to Core, Pro, or Factory? Get in touch and spec it your way.

Start a custom build enquiry
